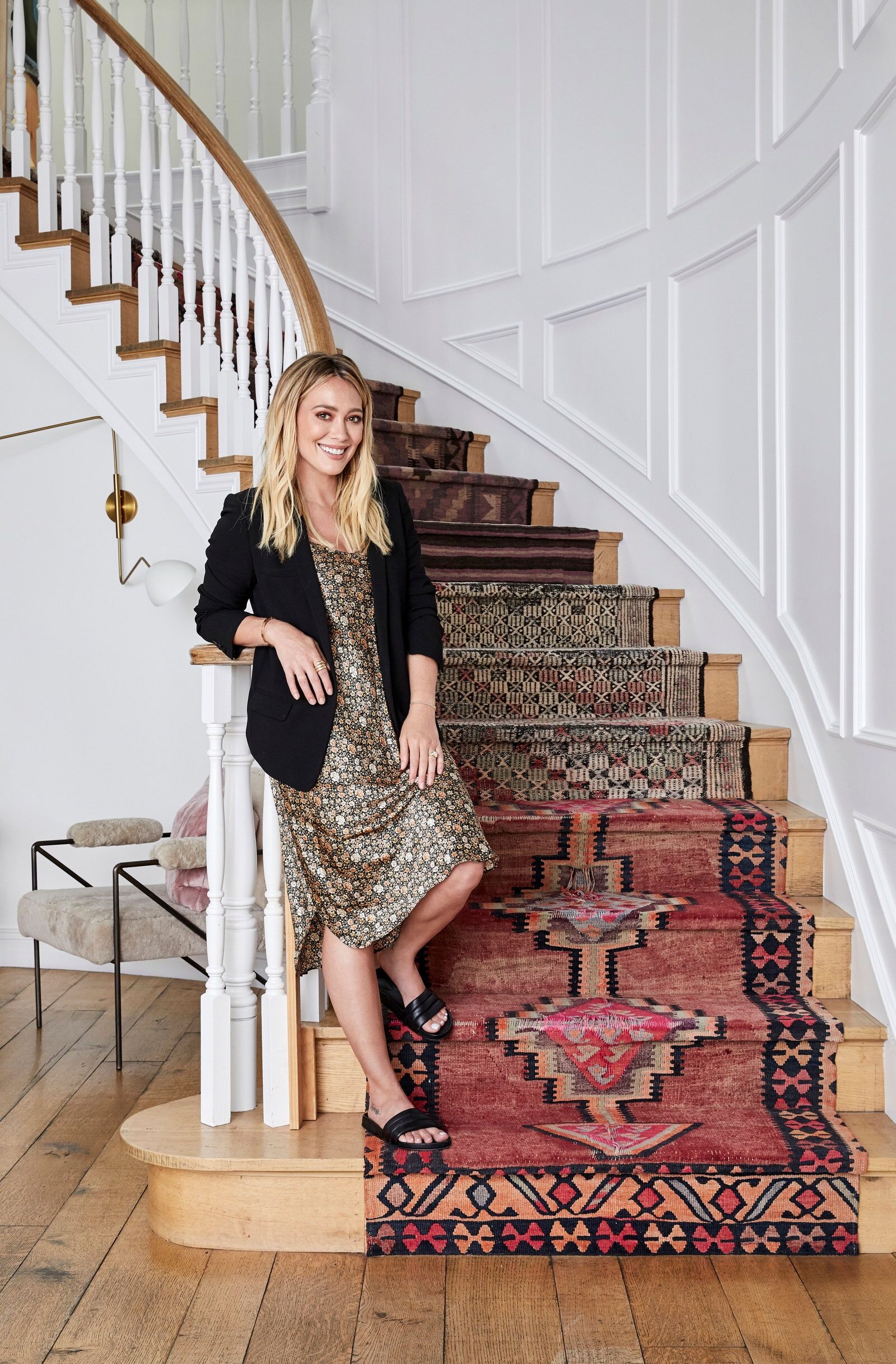

knowledge library / Custom Stair Runners: Measurement, Repeat, Installation, and Safety

A custom stair runner must be specified as an integrated system, not as a narrow rug placed on steps. The design has to respond to the exact stair geometry, including straight runs, winders, landings, nosings, risers, transitions, and any change in width or direction. Pattern scale, border placement, construction, pile, underlay, edge treatment, and installation method all affect how the runner looks and how it performs.

The most reliable process begins with a field-verified site measure, followed by coordinated drawings, sample approval, installer review, and a written installation scope. Safety, accessibility, and code requirements must be determined for the actual jurisdiction and project condition. This guide is a specification workflow, not a substitute for a qualified installer, architect, or code specialist.

Start With a Field-Verified Site Measure

Stair runners are especially sensitive to measurement errors because each tread, riser, nosing, landing, and turn affects the total length and pattern placement. Do not rely only on architectural drawings, old plans, or nominal stair dimensions when the finished stair can be measured in the field.

• Number of treads and risers
• Finished width of each stair section
• Tread depth and riser height at every step
• Nosing depth, profile, and projection
• Landing dimensions and direction changes
• Winder geometry
• Top and bottom termination conditions
• Door, threshold, and floor-finish interfaces
• Handrail, baluster, newel, and wall conditions
• Substrate material and condition
• Any variation from one step to the next

Measurements should be tied to annotated photographs and a dimensioned stair diagram. If multiple staircases appear similar, label each run clearly so production and installation information cannot be confused.

Document Stair Geometry Before Designing the Runner

A straight stair is easier to resolve than a stair with winders, curved sections, multiple landings, or changing widths. The design team should classify the geometry before deciding how the pattern will repeat and where the border will sit.

The runner design should follow the finished stair rather than force the stair into a nominal geometry that does not exist.

Winders Need Their Own Layout Strategy

Winders are wedge-shaped treads used to turn a stair without a full rectangular landing. Because the inside and outside tread depths differ, a pattern that appears regular on a straight run can compress, fan, or distort across the turn.

• The exact shape of each tread
• The runner centerline through the turn
• How the border widens, narrows, or changes angle
• Whether the field pattern continues, rotates, or resets
• Whether the runner is produced as one piece or coordinated sections
• Where seams or joins may occur
• How the installer will fit the material at the inside and outside radii

A full-size paper or digital template may be necessary. The installer should review the proposed pattern and border before production because small geometric differences can become visually obvious on the finished stair.

Landings Should Be Designed, Not Treated as Leftover Space

A landing is a major visual pause in a stair sequence. It may continue the runner, turn the composition, introduce a separate rug-like panel, or create a controlled transition between runs.

• Continuous field and border through the landing
• A centered motif or medallion on the landing
• A pattern reset aligned with the next run
• A framed landing panel connected to narrower stair runs
• A deliberately simplified landing to avoid awkward repeat cuts

The landing plan should show orientation, seams, edge treatment, pattern alignment, and the relationship to doors, walls, newels, and adjacent flooring.

Set Runner Width From the Stair, Not From a Generic Rule

Runner width influences comfort, visual proportion, edge exposure, border size, and installation. A runner that is too narrow may feel visually weak or leave vulnerable walking zones near the edge. A runner that is too wide may crowd walls, balusters, or skirt boards and leave little room for installation adjustment.

• Finished stair width
• Desired reveal on each side
• Handrail and baluster conditions
• Wall and skirt-board alignment
• Border width
• Centering method
• Changes in stair width
• Installation tolerance

For a stair that changes width, decide whether the runner remains constant, changes width, or is centered differently in each section. That decision should be drawn before the design is approved.

Resolve the Border Before Finalizing the Field Pattern

Borders can stabilize the design and visually frame the stair, but they can also expose geometric irregularities. A border that looks straight on a plan may appear uneven when wrapped over nosings, turned across winders, or aligned with a stair that is not perfectly symmetrical.

• Border width
• Inner and outer border lines
• Color and material
• Relationship to the field pattern
• Behavior at landings and turns
• Whether the border remains constant or adapts to geometry
• How the border terminates at the top and bottom

Review the border in elevation, not only in plan. The repeated transition from tread to riser can change how its apparent width is perceived.

Align the Pattern Repeat With the Stair Rhythm

A stair runner is viewed step by step. Pattern repeat should be coordinated with the tread-riser sequence so motifs do not drift unpredictably, disappear at nosings, or create awkward partial elements.

• Repeat length in relation to the measured stair sequence
• Motif placement on treads and risers
• What appears at each nosing
• Whether the repeat begins and ends at intentional points
• How the pattern transitions across landings
• Whether winders require controlled distortion or a separate layout
• How much adjustment the installer has during fitting

A nonrepeating or highly organic design can reduce the visibility of repeat misalignment, but it still requires an approved crop and orientation. A geometric repeat may require more precise production and installation coordination.

Choose Construction for the Stair Condition

Construction affects flexibility, edge behavior, pattern resolution, pile profile, backing, repair, and how the runner wraps over nosings and changes direction.

• Hand-knotted, flatwoven, tufted, woven, or mixed construction
• Ability to conform to the nosing profile
• Pattern clarity at the selected width
• Overall thickness
• Backing or foundation
• Seam and join options
• Edge-finishing method
• Repair strategy

The selected construction should be reviewed with the installer before production. A construction that works well as a loose area rug may require different detailing when secured across multiple treads and risers.

Keep Pile and Relief Compatible With Footing and Installation

Pile height and surface relief affect comfort, visual depth, edge profile, cleaning, and the way the runner meets the nosing. High-low surfaces, carving, and thick pile may create a strong design effect, but they should be evaluated carefully on stairs.

• Finished pile height
• Number of pile levels
• Location of carved or recessed areas
• Pile direction
• How the surface wraps over the nosing
• How the runner will be secured
• Whether the installer can achieve a consistent profile
• Cleaning access on treads and risers

A heavily sculpted detail may be more appropriate in the center of a broad landing than directly at a nosing or primary footfall zone.

Specify Underlay as Part of the Stair Assembly

Underlay can affect cushioning, profile, grip, sound, edge support, and the way the runner conforms to the stair. It should be selected with the rug construction, substrate, nosing, installation method, and local requirements in mind.

• Underlay material
• Thickness
• Extent on treads and risers
• Relationship to tack strips, adhesives, rods, or other securing methods
• Compatibility with the stair finish
• Behavior at nosings
• Replacement access
• Manufacturer and installer requirements

Do not assume that the underlay used beneath an area rug is automatically appropriate for a stair runner.

Coordinate Edges and Side Reveals

The runner edges are highly visible and can receive concentrated wear. The edge treatment must remain consistent through straight runs, turns, landings, and terminations.

• Bound, serged, overcast, woven, or other edge finish
• Edge color and width
• Expected profile after installation
• How edges are handled at winders
• How the runner terminates at landings
• Repair method if an edge becomes damaged
• Relationship between edge finish and border

Side reveals should be checked along the full run. Irregular stair widths or walls may make a mathematically centered runner appear visually off-center unless the installer and designer agree on a reference line.

Define the Installation Method Early

Installation should not be treated as a final-stage decision. The securing method affects dimensions, underlay, edges, nosings, pattern placement, and future removal or repair.

• Who performs the final measure
• Who approves the substrate
• Who supplies underlay and accessories
• How the runner is secured
• Whether rods are decorative, structural, or both
• Where seams or joins occur
• How the runner wraps the nosing
• How top and bottom terminations are finished
• How the site is protected during work
• Who signs off on the completed installation

The installer should review the site, drawings, sample, construction, and pattern layout before the rug enters production.

Coordinate Safety, Accessibility, and Code Requirements

Stairs are regulated conditions, and requirements vary by jurisdiction, building type, occupancy, and project scope. The architect and code specialist should determine what applies to the actual stair and installation.

• Permitted stair finishes
• Surface stability and attachment
• Changes in level and transition profile
• Nosing visibility and geometry
• Accessible-route implications
• Handrail and clearance coordination
• Fire and interior-finish documentation where applicable
• Slip, movement, or trip concerns
• Inspection and maintenance obligations

This article does not provide jurisdiction-independent code advice. No safety or compliance claim should be made without review of the exact runner, underlay, installation method, stair geometry, and applicable requirements.

Use Samples to Approve the Real Stair Condition

A small sample should be selected to answer specific questions. For a stair runner, the review may need to include more than color and fiber.

• Color under the actual stair lighting
• Fiber and sheen
• Construction and density
• Pile height
• Border width and edge finish
• Pattern scale
• How the material bends over a nosing
• Underlay and installed profile
• A full-size tread-riser mockup

The sample should be identified by version and tied to the approved drawings. If the border, pile, or edge is not represented, those items should remain open until separately approved.

Plan Attic Stock and Future Repair

Stair runners receive concentrated use and may be difficult to match years later. The project team should discuss attic stock before production rather than after damage occurs.

• Spare yarn for repair
• Extra border or edge material
• Additional runner length
• A replacement section for a high-wear run
• A complete replacement runner for critical projects

The appropriate strategy depends on the construction, dye lot, repeat, installation method, storage conditions, and ability to replace one section without making the remainder look mismatched.

Design for Future Repair

Repair planning should influence the initial design. A continuous runner across several floors may be visually seamless but more difficult to replace selectively. Separate runs with controlled transitions may simplify future work.

• Whether individual runs can be removed independently
• Where a future seam or replacement break could occur
• Whether the pattern repeat allows a section to be remade
• How color variation between production lots would be handled
• Whether the original drawings and yarn references will be archived
• Who should be contacted for repair

Custom Stair Runner Specification Workflow

1. Survey the stair. Photograph and field-measure every tread, riser, landing, winder, transition, and termination.
2. Classify the geometry. Identify straight runs, turns, winders, curved sections, and changes in width.
3. Set the runner width. Coordinate side reveals, walls, balusters, border, and installation tolerance.
4. Develop the layout. Resolve field, border, repeat, crop, orientation, landings, and winders.
5. Select construction and pile. Review flexibility, thickness, backing, nosing behavior, cleaning, and repair.
6. Coordinate underlay and installation. Confirm the full assembly and securing method with the installer.
7. Review safety and code requirements. Obtain project-specific input from the architect and appropriate specialists.
8. Approve samples and mockups. Confirm color, material, edge, pile, scale, and installed profile.
9. Release production in writing. Reference the final measure, layout, sample, specification, and installation assumptions.
10. Archive repair information. Retain drawings, yarn references, installation records, and attic-stock details.

Custom Stair Runner Checklist

Frequently Asked Questions

How do you measure for a custom stair runner?

Measure every finished tread, riser, nosing, landing, winder, and termination in the field. Record width changes, wall and baluster conditions, and any variation between steps. The final measure should be completed or verified by the installer responsible for fitting the runner.

How wide should a stair runner be?

Width should be based on the finished stair, desired side reveals, border, walls, balusters, and installation tolerance. A universal width is not appropriate for every stair.

How do you handle a pattern repeat on stairs?

Coordinate the repeat with the tread-riser rhythm, nosings, landings, and the approved top and bottom termination. Winders and curved stairs may need a separate layout or controlled pattern adjustment.

Can a custom runner be used on winders?

Yes, but winders require detailed measuring, templates, border and pattern planning, and specialist installation. The exact strategy should be reviewed before production.

What type of rug construction works best on stairs?

The correct construction depends on geometry, desired pile, pattern, edge, backing, installation method, cleaning, and repair requirements. The installer and rug supplier should review the complete condition.

Do stair runners need underlay?

Underlay may be part of the installation assembly, but the appropriate material, thickness, and extent depend on the runner, substrate, nosing, securing method, and project requirements. It should be specified with the installer.

Who should approve a custom stair runner before production?

The design team should consolidate approval after field measurement, layout, material, sample, installation, and project-specific code or safety review are complete. The production release should identify every approved drawing and sample version.

A Stair Runner Is a Measured Architectural Element

A successful custom stair runner does more than follow the stairs. It coordinates pattern, width, border, pile, edge, underlay, and installation with the exact geometry of the building.

Measure first, draw the full condition, resolve winders and landings, involve the installer early, and separate design approval from code and safety review. That process gives the runner a clearer visual rhythm, a more controlled installation, and a better foundation for maintenance and future repair.
